Drawer Front Installation Kit 1/8" Spacing

With this set of simple-to-use brackets and spacer, you can create perfect even reveals between your drawer fronts while freeing up your hands to fasten the front to the drawer box!

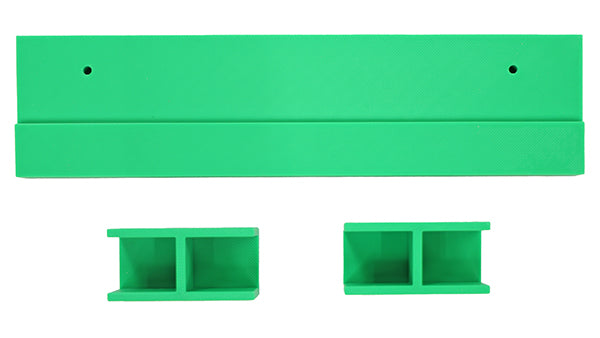

This set includes two (2) green spacer brackets and one (1) green bottom drawer spacer that will create 1/8" of "reveal" between each drawer front.

Note: These brackets are designed to work with drawer fronts made of 3/4" plywood, MDF or solid wood of equivalent thickness. The actual thickness of these materials is slightly less than 3/4.

Step 1: Fasten the bottom drawer spacer to the bottom of the cabinet using two screws or double sided tape and install the first (bottom) drawer front by setting it on top of the spacer and centering it on the sides of the cabinet then fasten it to the drawer box.

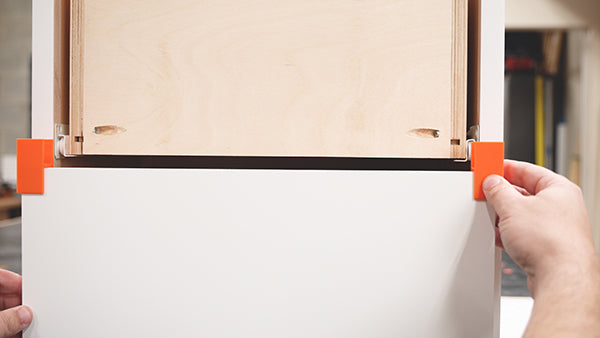

Step 2: Place the spacer brackets on each of the top corners of the drawer front. The bracket should be firmly seated against the top and side of the drawer front.

Step 3: Slide the next drawer front into the top of the brackets pressing down to make contact with the spacer.

Step 4: Fasten the drawer front

Repeat steps 2-3 for each subsequent drawer front

See product pictures for more detail of proper use.
